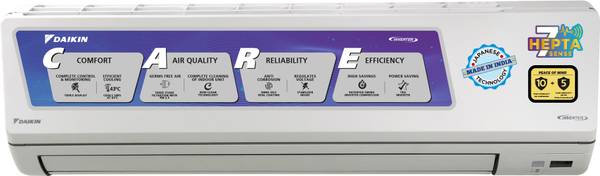

Daikin by Daikin India Private Limited 2024 Model 2.6 Ton 4 Star Split Inverter AC - White

Highlights

• 2.6 Ton
• 4 Star BEE Rating 2025 : For energy savings upto 20% (compared to Non-Inverter 1 Star)
• Auto Restart: No need to manually reset the settings post power-cut
• Copper : Energy efficient, best in class cooling with easy maintenance.
• Sleep Mode: Auto-adjusts the temperature to ensure comfort during your sleep

Specifications

Condenser Fin Type

Blue Fins

Installation Details

Split Air-Conditioners: -Drilling holes into a brick wall to take out the pipes (excluding core cutting) -Fixing a hole sleeve & cap -Fixing & connecting indoor and outdoor units with copper pipes & installation of drainage pipes using the standard kit provided by the manufacturer-Temperature & gas pressure testing -Demo of the product Window Air-Conditioners: -Installing the AC as per the specifications/requirements -Connection to separately purchased stabilizer/power point in the range of the power cord provided by the manufacturer -Demo of the product Note: Charges are to be paid directly to the Brand/Jeeves authorized technician at the time of installation.

Technician Visit Details

Authorized Service Engineer will do the following: -Repair or change the defective part -Provide replacement to the customer in case part or product is not repairable (only after replacement request approved)

Uninstallation Details

For returns, the uninstallation process includes: - Authorized service engineer visiting the customer's location - Uninstalling the product - Packing the item - Picking up the product

Indoor Noise Level

High - 37 dB, Low - 37 dB

Cooling Coverage Area

330.0 Sqft

Turbo Mode

Yes

ISEER

4.8 W/W

Other Performance Features

ISEER: 4.8 Stabalizer Inside Voltage Range (V): 130~285 Operating Ambient Temperature: Cooling: 20~52

Auto Air Swing

Yes

Air Flow Direction

4 Way Air Swing

Other Air Flow Features

COANDA AIR FLOW CFM 887 Feet3/min

Anti-bacteria Filter

Yes

Dust Filter

Yes

Deodorizing Filter

No

Air Swing

Vertical

LED Backlit Buttons

Yes

Night Glow Buttons on Remote

Yes

Battery Type

2 AAA Batteries

Other Remote Control Features

Lumniescent remote button

In The Box

1 x Indoor Unit, 1 x Outdoor Unit, Copper Coil pipe (3m), 1 x Remote, 1 x Manual, 1 x Warranty Card, 1 x Mounting plate, 2 x Accessory Filter, 1 x Insulation Pipe(2.95 Mtr), 1 x Connecting cable (wire) (3.7 Mtr), 2 x Tie Rap, 9 x fixing screws

Brand

Daikin

Model Name

FTKL90UV16L RKL90UV16L

Type

Split

Capacity in Tons

2.6 Ton

BEE Star Rating

4 Star BEE Rating

BEE Rating Year

2025

Color

White

Series

FTKL90/ 4 Star Inverter Split AC

Cooling and Heating

No

Cooling Capacity

9150 W

Compressor

Variable Speed

Remote Control

Yes

Refrigerant

R-32

Operating Modes

Hepta Sense 3D Airlow Dew Clean Technology Power Chill Coanda Flow DNNS Self Heal Coating

Condenser Coil

Copper

Air Conditioner Technology

Inverter

Wi-Fi Connectivity

No

Indoor W x H x D

1220 mm x 325 mm x 278 mm

Indoor Unit Weight

19.5 kg

Outdoor W x H x D

930 mm x 695 mm x 350 mm

Outdoor Unit Weight

47.5 cm

Disclaimer

The manufacturing date can be earlier than the model year.

Power Requirement

230V, 50Hz

Annual Electricity Consumption

1476.47 Units

Other Power Features

Cooling Function Coanda Airflow PM 2.5 Filter Active Carbon Filter Hepta Sense R32 Refrigerant Powerchill

Auto Restart

Yes

Timer

Yes

Child Lock

Yes

Quiet Mode

Yes

Sleep Mode

Yes

Memory Feature

Yes

Self Diagnosis

Yes

Emergency Operational Button

Yes

Other Convenience Features

Swing Compressor Power Chill Power-Airflow Dual Flaps Coanda Flow

Additional Features

Stabilizer Inside Coanda AirFlow
